Description

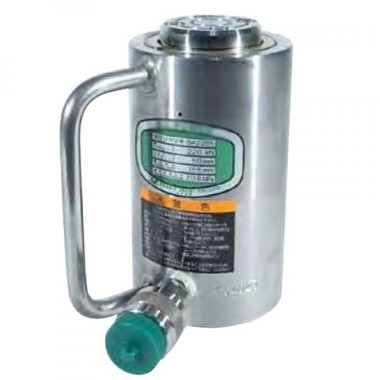

Zinko ZR-224S 22 Ton 3.94″ Stroke Stainless Steel Cylinder
These stainless steel cylinders operate with water pressure rather than hydraulic fluid and are a perfect fit for any application that connot support the accidental leakage of hydraulic fluid. Excellent choice for cleanrooms, shipbuilding, and medical applications.
Features
Cylinders utilize water as the operational fluid.
Lightweight and compact design based on durable stainless steel material.
There are no flamable materials used in the operation of these cylinders.
There is no risk of contamination of the enviroment that these cylinders are used in.
Specifications
| Model Number | Capacity (Tons) | Stroke (in) | Water Capacity (in3) | Cylinder Effective Area (in2) | Rod Dia (in) A | Bore Dia (in) B | Outside Dia (in) C | Closed Ht (in) D | Ship Weight (lbs) |
| ZR-224S | 22 | 3.94 | 19.04 | 4.83 | 2.09 | 3.39 | 8.27 | 8.27 | 20 |
