Description

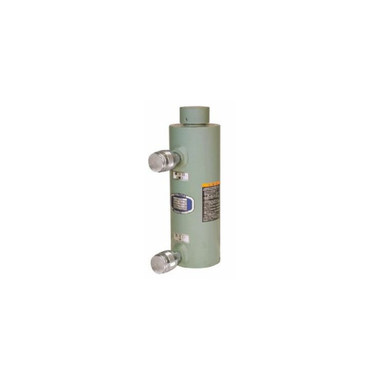

Zinko URD-75H15 75 Ton 6″ Ultra High Pressure 30,000 Psi Cylinder
*Image is for reference only, real product may differ.
The ultra high pressure double-acting cylinders offer lighter weight and higher efficiency due to their higher operating pressures, excellent replacement cylinders for tight spaces and in situations where weight is critical. These units can be found operating in nuclear power plants, diamond processing plants and shipyards around the world.
Features
- Manufactured from extremely high strength lightweight alloy to endure high operating pressures while keeping weight to the bare minimum.
- Hard chrome plated ram to endure harsh environments and extend cylinder useful life.
- Designed with high lateral load tolerance of up to 50% of lifting capacity.
- Double acting design increases controllability of cylinders allowing smooth operation of equipment.
- Larger units are equipped with carrying handles to ease transport and placement of cylinders.
| Model Number | Stroke (in) | Oil Capacity (in3) | Cylinder Effective Area (in2) | Collapsed Height (in) | Outside Dia (in) | Head Dia (in) | Ship Weight (lbs) |
| A | B | C | |||||
| URD-75H15 | 5.91 | 35.40 | 5.96 | 13.00 | 4.41 | 2.75 | 54 |
