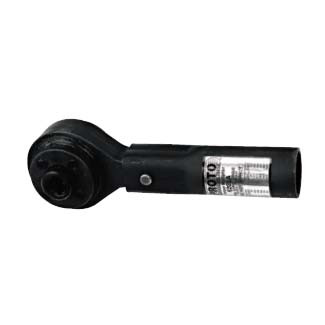

Description
Maximum rated input: 227 ft/lb (303 Nm).
Maximum rated output: 750 ft/lb (1,000 Nm).
Effective multiplication: 3.3:1.
Reaction system: tubular reaction bar.
Gear system: single stage planetary.
Product No.: 6202A
Input Drive: 1/2” Sq. Female
Output Drive: 3/4” Sq. Male
Gear Ratio: 4.0:1
Head width: 21-3/16”
Head length: 21-3/16”
Handle length: 5-1/4”
Overall length: 8-17/32”
Weight: 4.6 lbs
