Description

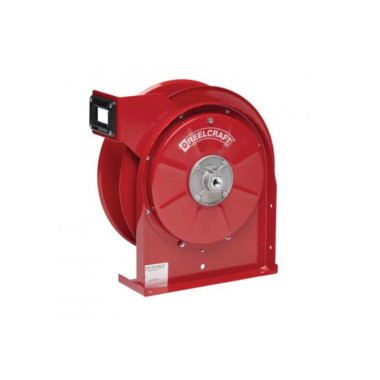

Reelcraft 5400 OHP 1/4 in. x 30 ft. Premium Duty Hose Reel
Reelcraft Series 5000 hose reels are durable and compact for a wide range of applications with critical space requirements.
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- The swivel is nested inside the spool for protection from impact and the environment
- Hose not included on this model
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Guide arm adjusts to two positions
Reel Specifications and Dimensions
| Weight | 23 lbs |
|---|---|
| Series |
5000 |
| Hose I.D. |
1/4″ |
| Hose O.D. |
0.58″ |
| Hose Length |
30′ |
| Pressure |
5000 psi |
| Inlet |
1/4″ NPT(F) |
| Reel Outlet |
1/4″ NPT(F) |
| Hose Included |
No |
| Max Temperature |
210 °F |
| UPC |
699567000891 |
