Description

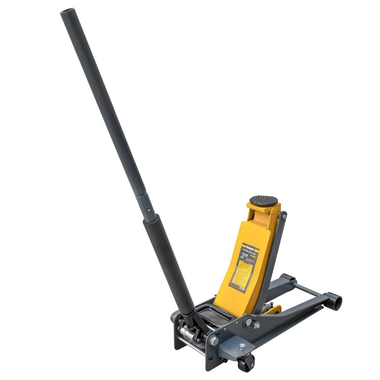

Ranger RFJ-6HD 3-Ton Capacity Heavy-Duty Low Rider Floor Jack
The RFJ-6HD is considered Ranger’s “low rider” garage floor jack, and it is capable of lifting up to 3 tons with no issue. This jack has a quick-pump jack features a quick-pump design and can raise up to 21” so you’ll be able to get the most out of your jack stand’s max height.
Features
- 6,000-lb. lifting capacity.
- Low-Profile chassis accommodates low ground-clearance vehicles.
- Swivel casters for easy mobility.
- “Quick-pump” feature for faster lifting speeds.
- Professional model designed for heavy use.
- Universal joint pressure release system.
- Roller-cam, dual plunger pump assembly.
- Heavy steel construction for maximum durability.
- Double-sealed hydraulics for longer service life.
- Sealed hydraulic unit prevents contamination.
- Safety over-load system.
- Flanged side plates for increased strength.
Specifications
| Lifting Capacity | 6,000 lbs. (2,722 kg) |
| Lowered Pad Height | 3-5/8″ (90 mm) |
| Raised Height | 21″ (533 mm) |
| Front Overall Width | 11″ (279 mm) |
| Rear Overall Width | 14″ (356 mm) |
| Chassis Length | 27″ (686 mm) |
| Shipping Weight | 108 lbs. (50 kg) |
| Shipping Dimensions | 29” x 15” x 8” (737 mm x 381 mm x 203 mm) |
