Description

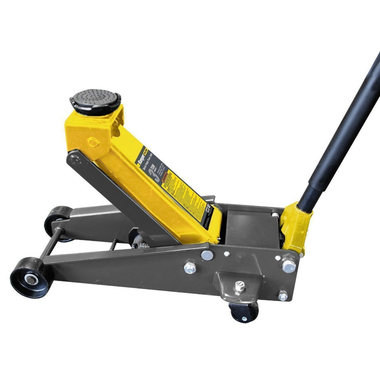

Ranger RFJ-3TQP 3-Ton Speedy Floor Jack
The ruggedly crafted RFJ-3TQP is a versatile quick-lifter with a 3-ton lifting capacity. Heavy steel construction and sealed hydraulics guarantee maximum durability, while the built-in safety overload valve protects personnel and equipment.
Features
- 6,000-lb. lifting capacity.
- Alloy-plated ram.
- Exclusive “Quick-Pump” feature lifts saddle to chassis in one easy pump.
- Welded lift arm assembly.
- Heavy gauge steel construction.
- Swivel casters for easy mobility.
- Professional model designed for heavy use.
- Heavy steel construction for maximum durability.
- Sealed hydraulics prevents contamination.
- Built-in safety overload system.
Specifications
| Lifting Capacity | 6,000 lbs. (2,722 kg) |
| Lowered Pad Height | 5″ (127 mm) |
| Raised Height | 19.75″ (502 mm) |
| Front Overall Width | 11″ (279 mm) |
| Rear Overall Width | 13.5″ (343 mm) |
| Chassis Length | 25.5″ (648 mm) |
| Shipping Weight | 86 lbs. (39 kg) |
| Shipping Dimensions | 29″ x 15″ x 8″ (737 mm x 381 mm x 203 mm) |
