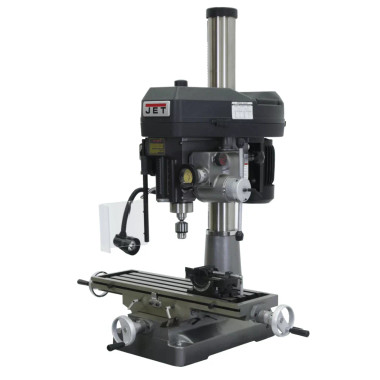

JET Tools JMD-18PFN Mill/Drill W/NEWALL DP700 DRO
The JET JMD-18PFN Mill/Drill combines a belt-driven drill press with a two-axis milling table and a heavy-duty power downfeed alongside manual feed. A one-piece cast iron column supports the head, and this configuration includes the NEWALL DP700 digital readout for position tracking.
Features
- 1/2” Drill chuck, chuck arbor.
- 360° head swivel.
- Adjustable carbide face mill.
- Base taper allows for easier clean up.
- Easy to read internal depth gauge.
- Heavy-duty power downfeed with manual feed.
- One-piece cast iron column for added support.
- Positive quick-stop knob and easy to read internal depth gauge.
- UL Listed.
Specifications
| Model Number | JMD-18PFN |
| Base Dimensions (In.) | 15-3/4 x 23-3/4 |
| Column Diameter (In.) | 4-1/2 |
| Face Mill Capacity (In.) | 3 |
| Max Distance Spindle to Table (In.) | 28 |
| Motor (HP) | 2 HP, 115/230V, 1 Ph, Prewired 115V |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
| Powerfeed | Downfeed |
| Quill Diameter (In.) | 3 |
| Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001 |
| Range of Spindle Speeds (RPM) | 150 – 3,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel Auto (In.) | 4-1/4 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 15-7/8 |
| T-Slot Centers (In.) | 1-13/16 |
| T-Slots Number and Size (In.) | 4 and 5/8 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 31-3/4 |
| Work Table Weight Capacity (Lbs.) | 400 |
| Weight (Lbs.) | 944 |
