Description

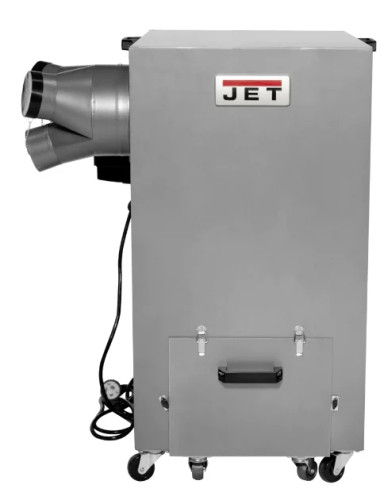

JET Tools 414900 JDC-510 JET 1500 CFM Industrial Dust Collector 3HP, 220V., 3Phase
The JET 414900 (model JDC-510) is a 3 HP single-phase industrial dust collector on 220V, suited to capturing abrasive dust from belt, disc and grinding machines. Three dust ports let it serve multiple machines at once, chips and dust collect in an easy-to-clean metal drawer, and the unit rolls on casters for shop mobility.
Features
- All steel construction.
- CSA/US: Following strict guidelines and electrical requirements, this JET Industrial Dust Collector is CSA/US certified.
- Easy to change exhaust filter.
- Non-sparking aluminum housing and fan blade.
- Portable on 4 casters and 2 handles for ease of movement.
- Quiet, effective dust collection method.
- Simple and easy to clean-out chip & dust drawer.
Specifications
| Stock Number | JT-414900 |
| Dust Port Size (In.) | 3 |
| Filter Size (W x L x D) (In.) | 19-3/8 x 25 x 1-25/32 |
| Maximum CFM | 490 |
| Model Number | JDC-510 |
| Motor Amps | 15 |
| Motor (HP) | 3HP, 220V, 1Ph |
| Motor Voltage (V.) | 220 |
| Overall Dimensions (L x W x H) (In.) | 30-5/8 x 20-7/8 x 29 |
| Sound Rating (Db.) | 75 |
| Style (Type) | Dust Collector |
| Weight (Lbs.) | 212 |
| Air Flow (CFM) (High) | 957 @ 8″ Inlet 412 @ 3″ Inlet |
| Filter Efficiency | 85.4% @ 3 micron to 10 micron |
| Electrics | 3HP, 220V, 1Ph |
| Filter Type | Anti-Spark / Fireproof |
| Gross Weight (Lbs) | 320 |
| Net Weight (Lbs.) | 290 |
| Number of Ports | 3 |
| Port Size (in.) (with Adaptor) | 8/3 |
WARNING: California Prop 65
Downloads
Manual
