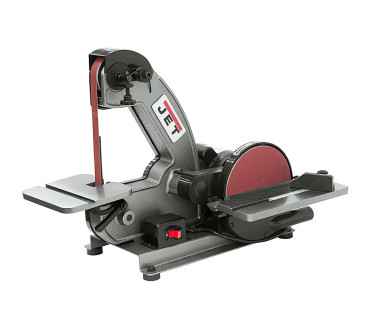

JET Tools J-4002 1 x 42 Bench Belt & Disc Sander
The JET J-4002 combines a 1 x 42 abrasive belt and an 8-inch sanding disc in one bench-top machine for sanding, grinding and finishing. A cast iron tilting table and removable platen let the operator work outside curves, odd shapes and angled pieces on the belt.
Features
- Cast iron tilting table.
- Cast construction.
- Heavy-duty steel base with rubber feet.
- Adjustable dust deflector and dust chute.
- Miter gauge turns and locks for common angles 45º left and right.
- Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt.
- Hinged idler wheel cover.
- Abrasive belt unit does the work of a jigsaw, coping saw or hand file while removing material and finishing at the same time, allows the operator to get into small openings plus handle odd shapes and angles.
Specifications
| Model Number | J-4002 |
| Belt Size (W x L) (In.) | 1 x 42 |
| Belt Table Size (In.) | 6-1/8 x 7-1/8 |
| Disc Diameter (In.) | 8 |
| Belt Table Tilt (Deg.) | 45 Out |
| Motor (HP) | 1/3 HP, 115V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 21 x 22 x 14 |
| Table Slots (In.) | 5/8 |
| Gross Weight | 63.0 |
| Net weight | 63.0 |
