Description

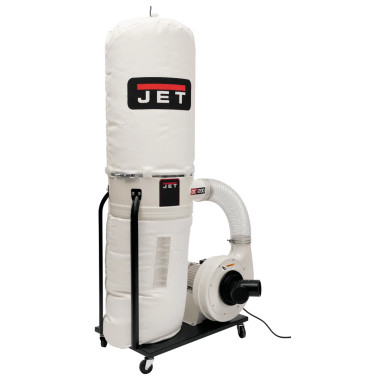

JET Tools 710703K DC-1200VX-BK3 Dust Collector, 2HP 3PH 230/460V, 30-Micron Bag Filter Kit
The JET DC-1200VX-BK3 is a single-stage dust collector for shop and woodworking machinery, supplied with a 30-micron bag filter kit. It runs on a 2HP three-phase 230/460V motor and moves 1,200 CFM, with a Vortex Cone that separates chips ahead of the filter to keep airflow consistent.
Features
- Eliminates premature filter clogging for sustained performance.
- High air velocity (CFM) design stands up to any competitive specifications.
- Includes four casters for maneuverability and total portability.
- Industrial controls designed for years of trouble-free use.
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty.
- Quick-connect collection bags with elastic band for fast, easy installation and removal.
- Single-stage design for economical and quiet operation.
- Vortex Cone improves chip separation and collector bag packing efficiency.
Specifications
| Stock Number | JT-710703K |
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 4″ (CFM) | 1200 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 29 |
| Efficiency (Micron) | 30 |
| Impeller Diameter (In.) | 12 |
| Impeller Material | Steel |
| Model Number | DC-1200VX-BK3 |
| Motor Amps | 6/3 |
| Motor Power (HP) | 2 |
| Prewired Voltage (V.) | 230 |
| Sound Rating (Db.) | 80 – 85 |
| Static Pressure (Wc.) | 11-1/2 |
| Style (Type) | Bag |
| Velocity @ 4″ (FPM) | 13,745 |
| Weight | 150 |
WARNING: California Prop 65
Downloads
Manual
