Description

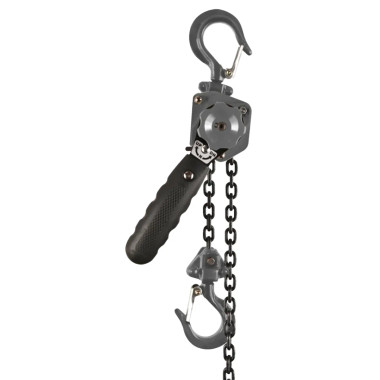

JET Tools 287103 JLP-025A-20, JLP-A SERIES 1/4T 20′ MINI
The JET JLP-025A-20 is a 1/4-ton mini lever puller with 20 feet of lift for light- to medium-duty industrial work. The patented brake wear indicator signals when the friction disks need replacing, making it a practical contractor-grade puller for rigging and positioning loads.
Specifications
- Capacity: 1/4 ton (500 lbs).
- Lift: 20′.
- Headroom (Min distance between hooks): 8.25″.
- Equipped with latching slip hooks.
- All steel construction.
- Cast steel safety latches are secured with Allen screws and lock nuts.
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas.
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety.
- Impact resistant all steel construction for added durability and protection.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging.
- Load tested to 125% of capacity with certificate.
- Needle bearing design increases efficiency and promotes smooth operation.
- This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection.
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security.
