Description

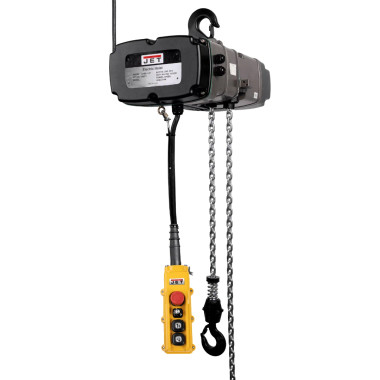

JET Tools 140258 TS050-100 1/2T ELEC HST 100′ LIFT 3PH
The JET TS050-100 is a 1/2-ton two-speed electric chain hoist with a 100-foot lift, built for 230V three-phase industrial lifting. A DC motor brake, 2-in-1 mechanical brake with overload protection and a patented gear limit switch position loads accurately and hold them safely during a power interruption.
Features
- The 2-in-1 design of the Mechanical Brake and Overload Protection ensures operator safety and extended product life.
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering the position.
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
- Two Speed Motor ensures the correct speed for the job with a click of a button.
- IP55 TEFC Motor with Class F insulation for working in harsh environments.
- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
- Pendant Control is IP65 rated and is fully waterproof, insulated, and impact resistant for years of service.
- Built-in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°). Load will be allowed to be lowered until the unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord.
Specifications
| Stock Number | JT-140258 |
| Capacity (Lbs.) | 1100 |
| Duty Cycle (%) | 40 / 20 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 100 |
| Lifting Speed (FPM) | 33/8 |
| Load Capacity (Tons) | 1/2 |
| Max. Number of Starts (Per Hr.) | 240 |
| Max. On-Time (Min. / Hr.) | 30 |
| Motor (HP) | 1-1/2 HP, 230V, 3Ph |
| Motor Phase | 3 |
| Overload Protection | Yes |
| Weight (Lbs.) | 189 |
| Headroom (In.) | 19-7/10 |
| Overall Width (In.) | 15-1/6 |
| Motor Current (Amps) | 4 / 6.9 |
