Description

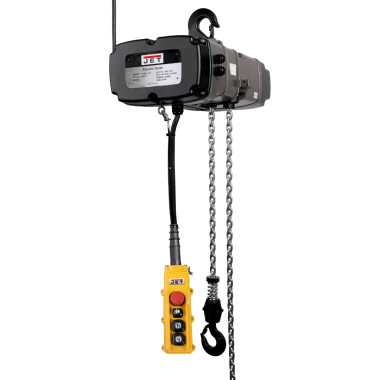

JET Tools 140239 TS200-010 2T ELEC HST 10′ LIFT 3 PH
The JET 140239 is a 2-ton TS Series two-speed electric chain hoist for overhead lifting in industrial settings. It runs on 230V three-phase power and provides 10 feet of lift.
Features
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
- Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position.
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
- Two Speed Motor ensures the correct speed for the job with a click of a button.
- IP55 TEFC Motor with Class F insulation for working in harsh environments.
- 5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
- Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
- Built in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord.
Specifications
| Stock Number | JT-140239 |
| Capacity (Lbs.) | 4400 |
| Duty Cycle (%) | 40 / 20 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 32 / 8 |
| Load Capacity (Tons) | 2 |
| Max. Number of Starts (Per Hr.) | 240 |
| Max. On Time (Min. / Hr.) | 30 |
| Model Number | TS200-230-010 |
| Motor (HP) | 1.5HP, 230V, 3PH |
| Weight (Lbs.) | 375 |
| Headroom (In.) | 40-1/16 |
| Overall Width (In.) | 20-7/8 |
| Motor Current (Amps) | 8.4 / 16.8 |
WARNING: California Prop 65
Downloads
Manual
