Description
JET Tools 140189 MT300 3T Electric Trolley
The JET MT300 is a 3-ton two-speed electric trolley that moves loads along an I-beam for use with a compatible hoist. Its IP-55 rated drive and IP-65 rated pendant suit indoor and outdoor work, and two travel speeds reduce bump firing while still allowing quick repositioning.
Features
- Heavy-Duty motor puts out up to 0.8HP making it the strongest in it’s class.
- TAA Approved.
- Two speeds reduces bump firing to while still allowing high speed movement of materials.

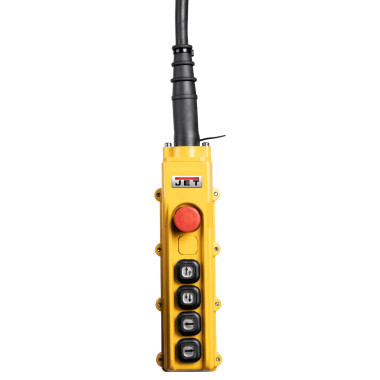

- Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant.
- Expanded flange capacity kits are available.
Specifications
| Stock Number | JT-140189 |
| Capacity (Lbs.) | 6600 |
| Load Capacity (Tons) | 3 |
| Maximum Beam Flange Width (In.) | 7 |
| Minimum Beam Curve Radius (In.) | 78.7 |
| Minimum Beam Flange Width (In.) | 5 |
| Model Number | MT300 |
| Motor (HP) | 0.2 / 0.8 |
| Motor Voltage (V.) | 230 |
| Weight (Lbs.) | 243 |
| Wheel Diameter (In.) | 1-1/2 |
| Travel Speed – Low (FPM) | 20 |
| Travel Speed – High (FPM) | 79 |
