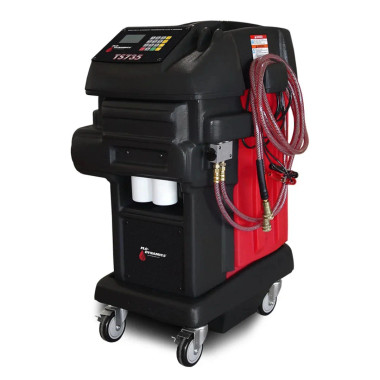

Flo-Dynamics 98018 TS735 ATF Inline Exchanger
Easily perform exchanges from low-flow vehicles to trucks and buses.
Features
- Add/remove fluid feature.
- Fluid totalizer.
- Voltmeter.
- Power loss memory.
- Pause function.
- Two inline 22-micron filters.
- Drains transmission pan for filter change.
- Rotocast polyethylene body and tanks won’t scratch vehicle.
- Adapter rack drains into waste tank keeping adapters dry and organized.
- Clear service hoses provide visual confirmation of fluid exchange.
- Durable, 5-inch locking caster wheels.
- Fully automatic, complete exchange with the push of a button.
- Powerful 2.5 gallon per minute rated pump ensures rapid exchanges with unmatched speed.
- Patented electronic measuring technology allows optimum fluid level to be maintained.
- Select 1 to 35 quart exchange amount Ergonomically correct working height Fully interactive LCD control panel with easy-to-follow screen prompts with service indicators.
- Patented flow diverter valve allows you to switch flow direction with the push of a button.
- Included standard adapter set for easy hookup to virtually any make and model.
Specifications
| TS735 | |
| Dimensions | 39” H x 24-3/4” W x 25” D |
| Weight | 138 lb. |
| Waste Fluid Tank | 35 quarts |
| New Fluid Tank | 35 quart |
| Power | 12V DC from vehicle battery |
