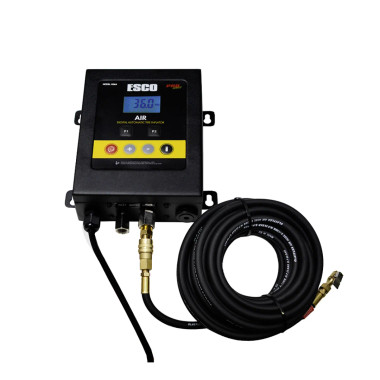

Esco 10964 Tire Inflator, Steel Wall Mounted w/ Digital Display and Clip on Chuck NEW
The ESCO Digital Wall Mounted Tire Inflator Model 10964 is a wall mountable inflation system cased in a heavy-duty steel housing, designed to be used indoors in an industrial or workshop environment. This standard wall mounted inflator can hold two programmable “pre-sets”, for quick access to common tire inflating pressures and can accurately inflate tires with up to 164 ft. of air hose. With an accuracy rating of +/- 0.3 psi and a 1-year warranty, this professional inflation unit is perfect for any application.
Features
- Two programmable pre-set functions (P1 & P2) for quick use with common inflation values.
- Designed with a heavy duty metal house.
- Large backlit LCD display.
- Inflates accurately with hose length up to 165 ft – 50 m.
- Operation: Inflate, Deflate, & Measure Air Pressure.
- OPS System – audible warning.
- Comprehensive Diagnostics & Error Reports.
Specifications
| Reader Unit | 1 3/4 in. x 1 in. – 44mm x 25mm |
| Chuck Type | Clip-On |
| Chuck Style | Single Straight |
| Scale | 0-174 psi, 1-12bar |
| Inlet Size | 1/4″ NPT |
| Hose Length | 32 ft. – 10m |
| Dimensions | 11 (L) x 11 (W) x 7.5 (H) in. – 279 x 279 x 178mm |
| Weight | 10 lbs. – 4.5 kg |
| Accuracy | +/- 0.3 psi @ 25-75 psi |
| Operation | Inflate, Deflate, Measure |
| Supply Pressure Max. | 182 psi – 12.55 bar |
| Advised Application | Industrial, Workshops |
| Supply Voltage | 110-240V AC (50-60 Hz) |
| UPC | 816904024550 |
Downloads
Manual
Wall Mounted Tire Inflation Calibration Procedures
Spec Sheets
