Description

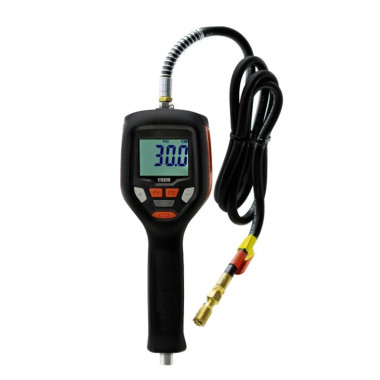

Esco 10963 Tire Inflator, Automatic Digital LCD Gauge w/ Clip on Chuck (Rechargeable) NEW
The ESCO Automatic Handheld Tire Inflator Model 10963 is a truly portable automatic inflator/deflator, powered by a rechargeable Lithium-Ion battery, lasting up to an impressive 15 hours (continuous use). Connect to airline, set the required pressure and then let this automatic inflator do the rest. Housed in a tough ABS case, has a 5 ft. hose and inflates up to 174 psi at an astonishing 88 cfm / 2,500 L/min @ 182 psi. The inflator also has two programmable pre-set buttons for setting the common pressures quickly and easily. With OPS (Over Pressure Setting) making it ideal for mobile fitting for truck, car and earthmoving equipment.
Features
- Large Backlit Digital Display.
- Two programmable Pre-set buttons.
- Tough poly carbonate / ABS body.
- Multi-scale gauge: PSI, bar, kPa, kgF.
- Wire Sheathed Hose – Eliminates Hose Kinking.
- Rechargeable Battery – Includes AC adaptor for charging.
- Includes Calibration Certification.
Specifications
| Reader Unit | 2 3/8 in. x 1 3/4 in. | 60mm x 44mm |
| Chuck Type | Clip-On |
| Chuck Style | Single Straight |
| Scale | 0.5-12 bar/1200 kPa 174 psi / 12kgf |
| Inlet Size | 1/4″ NPT |
| Hose Length | 5 ft. | 1.5m |
| Dimensions | 15 (L) x 5 (W) x 5.3 (H) in. | 380 x 125 x 135mm |
| Weight | 4.5 lbs. | 2 kg |
| Accuracy | +/- 2 psi @ 25-75 psi |
| Operation | Inflate, Deflate, Measure |
| Supply Pressure Max. | 200 psi | 13.79 bar |
| Advised Application | Industrial, Workshops |
| Inflation Flow (CFM) | 88 CFM |
| Inflation Flow (LPM) | 2500 L/min @ 145 psi |
| Battery | Rechargeable Lithium-Ion |
| Warranty | 1-Year |
| UPC | 816904024536 |
