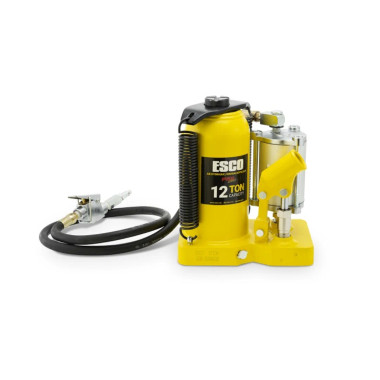

Esco 10380 Bottle Jack, 12 Ton, Air/Hydraulic, Heavy Duty Welded Base

Description

Esco 10380 Bottle Jack, 12 Ton, Air/Hydraulic, Heavy Duty Welded Base

The Esco Pro Series Air Hydraulic Lifting Equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a jack that will fit any service technician’s needs. Each jack is designed uniquely for specific application including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.

Features

• Fully welded cylinder and frame provide superior strength and extended service life.
• Extra thick jack base provides exceptional support and stability in severe conditions.
• The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
• Chrome-plated piston for extra rust and corrosion resistance.
• Fitted with a safety valve to prevent overloading.
• Double spring design for controlled and safe decent while releasing pressure from the cylinder.
• Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.
• Design to be operated using air or manually with included two-piece lifting/lowering handle.
• Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
• Fitted with a heavy duty constructed chrome plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.

Specifications
