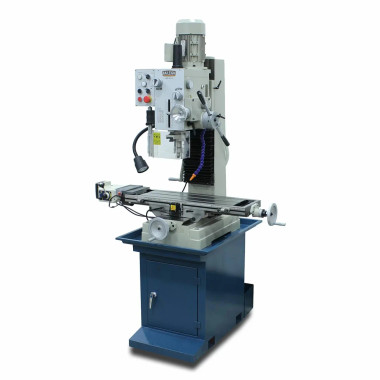

Baileigh VMD-931G Vertical Mill Drill
Ever wish you had a milling table on your Drill Press? That’s why we came up with the VMD-931G. Unlike most Milling Machine-Drill combinations, this multi-functional Vertical Mill Drill lets you select the right speed to suit your application and cut down on tooling wear and tear.
*Recommended for: Milling, drilling, tapping, and boring.
Features
- 2 hp motor runs on 110-volt single-phase power, optimal for any shop, garage, or educational institution.
- 1.75” maximum drilling capacity.
- 31.5” x 9.45” milling-style table enables you to tackle a wider variety of projects (with the right tooling).
- Table incorporates an X-axis power feed to make those longer cuts accurately.
- Gear-driven head swivels 90° left and right.
- You can choose from 6 speeds to accommodate each mill, drill, or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Wide steel column eliminates flex when you’re milling or drilling at full capacity.
- Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength, and minimizes vibrations.
- Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.
Specifications
| Model Number | VMD-931G |
| Drilling Capacity (In.) | 1.5 |
| Face Mill Capacity (In.) | 3.15 |
| Motor Voltage (V.) | 110 / 1 Phase |
| Motor (HP) | 2 hp |
| T-Slots Number and Size (In.) | .55″ |
| Table Size (L x W) (In.) | 31.5″ X 9.45″ |
| Weight (Lbs.) | 1200 |
*Specifications subject to change without notice.
