Description

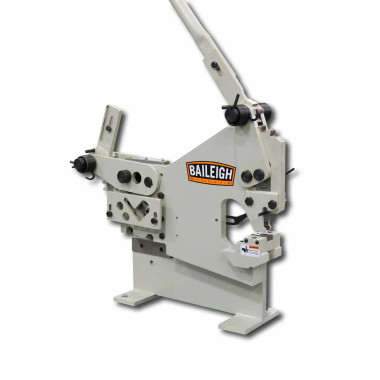

Baileigh SW-22M-P manual iron worker with punch
The versatile SW-22M-P combines the capabilities of 2 machines, the Manual Sheet Metal Punch HP-160 and the Manual Ironworker SW-22M, in one. This solidly-built Manual Punching and Shearing Machine will save space in any small shop.
Features
- Shear station cuts angle iron, flat bar, T-bar, solid round, and solid square stock of varying thicknesses.
- Includes 9 round punches and dies: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, and 5/8”.
- Back-stop lets you easily deliver repeatable results for light production work.
- Material hold-downs ensure straight, clean shearing and punching.
- Gear transfers the power from your arm to the blades via a sturdy handle.
- Extra-long handle offers more leverage, multiplying your force and eliminating strain.
- Made from durable plate steel to last for years and remain accurate.
Specifications
| Model Number | SW-22M-P |
| Punch Max Capacity (In.) | 0.137” mild steel/0.196” Aluminum |
| Rod Shear Max Square (In) | 5/8″ |
| Shipping Dimensions (L x W x H) (In.) | 48 x 45 x 38 |
| Input Power | Manual |
| Throat Depth (In.) | 6.25″ |
| Weight (Lbs.) | 450 |
*Specifications subject to change without notice.
