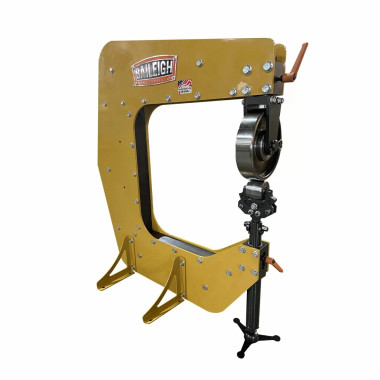

Baileigh EW-21 Bench Top English Wheel
Made from twin 3/8” thick steel plates, the EW-21 benchtop English wheel is just what the metal shaping doctor ordered for small shops. But don’t let the small size fool you, it is one of the most rigid English wheels on the market with features that other wheels can only dream about. It includes 4 anvils, to handle almost any application.
Features
- 16 gauge mild steel capacity.
- 21” throat depth with a large lower opening for curved panels.
- The upper wheel is 8” diameter x 2” wide.
- Comes with 4 bottom anvils (all 2” wide) in the following radii: flat, 2”, 8″, and 24”.
- Everything on this wheel is adjustable, including the caster and camber of the bottom anvil.
- The wheel even rotates to work parallel with the frame for those long projects.
- Incorporates quick-release lower anvil support with locking cam for easy panel removal.
- You can conveniently store your anvils on the integrated roll holder.
- For those with extra space, a sturdy floor stand is available (*Sold Separately).
- Optional lower anvils are available, as well as a rubber top roll (*Sold Separately).
Specifications
| Model Number | EW-21 |
| Aluminum Capacity (Gauge) | 14 |
| Head Style | Rotating |
| Lower Die Radius | FLAT, 24″, 8″, 2″ |
| Mild Steel Capacity (Gauge) | 16 |
| Shipping Dimensions (L x W x H) (In.) | 60 x 48 x 80 |
| Throat Depth (In.) | 21″ |
| Top Roll Diameter | 8 |
| Shipping Weight (Lbs.) | 600 |
*Specifications subject to change without notice.
