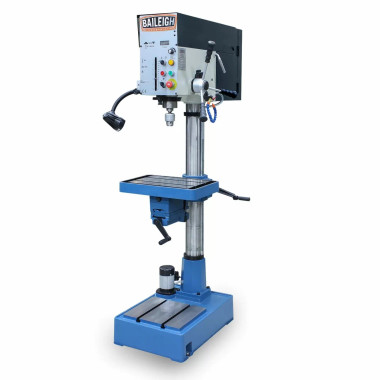

Baileigh DP-1400VS Variable Speed Drill Press
Built using the finest components, the DP-1400VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a unique table that pivots 360 degrees, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
Features
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1.25” mild steel.
- Heavy duty spindle transfers power to the 3 Morse taper tooling.
- Speed Potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 80 to 2500 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .625” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
- Base and 25.5″” x 17.75” table are made of a heavy iron casting to increase rigidity with very large .511″ T-slots which let a vise or fixture securely hold your material.
- Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
Specifications
| Model Number | DP-1400VS |
| Base Dimensions (In.) | 7.75″ x 25.5″ |
| Column Diameter (In.) | 4″ |
| Drilling Capacity (In.) | 1.25 |
| Input Power | 220V / 1-phase |
| Quill Diameter (In.) | 2.44” |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 88 |
| Table Slots (In.) | .551″ |
| Max. Spindle Speed | 230 – 2500 rpm |
| Min. Spindle Speed | 80 – 1000 rpm |
| Weight (Lbs.) | 710 |
*Specifications subject to change without notice.
