Description

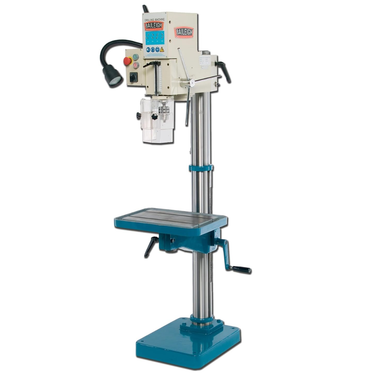

Baileigh DP-1000G Gear Driven Drill Press
Equipped to run at 4 different speeds, the gear-driven Metal Drill Press is as versatile as it is tough. For an economical price, you can add this drill—built to Baileigh’s exacting quality standards—to your shop.
Features
- 1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.
- Maximum capacity of up to 1” mild steel.
- Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.
- Sturdy 4″ diameter column reduces flexing to ensure accurate results.
- You can easily adjust the gear head up or down on the column.
- Comes standard with a heavy cast iron base and adjustable table.
- Includes a protective guard around the spindle for your safety.
- Bright halogen work light bends to provide visibility where you need it.
Specifications
| Model Number | DP-1000G |
| Base Dimensions (In.) | 15.5″ x 19.5″ |
| Base Size (In.) | 15.5 x 19.5 |
| Drilling Capacity (In.) | 1 |
| Drilling Capacity Mild Steel (In.) | 1 |
| Input Power | 110V |
| Motor (HP) | 1.5 hp |
| Shipping Dimensions (L x W x H) (In.) | 66 x 22 x 28 |
| Speed Range (RPM) | 125-1740 |
| Spindle Taper | MT 3 |
| Table Size (In.) | 19.75″ x 13.75″ |
| Tapping Capacity Mild Steel (In.) | .625″ |
| Weight (Lbs.) | 500 |
*Specifications subject to change without notice.
