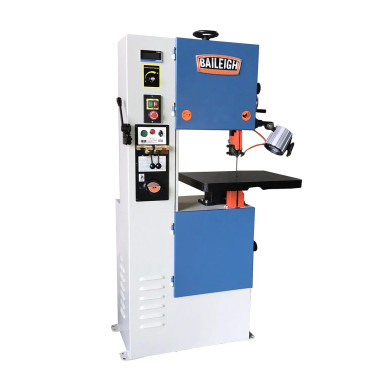

Baileigh BSV-12VS-V2 Vertical Band Saw
Within our lineup of Vertical Bandsaws, the BSV-12VS-V2 metal cutting bandsaw increases capacity and adds an inverter to control the blade speed. Make straight and curved cuts with the vertical blade.
*Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
Features
- 1 hp motor runs on 120-volt power and accepts standard 1/8” to 1/2” blades.
- Wide 12.2″ throat depth and 6.875” maximum cutting thickness.
- Cast iron table can pivot front to back and left to right while the LED work light lets you see what you’re cutting more clearly.
- Variable speed from 100 to 1000 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
- This industrial-grade band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
Specifications
| Model Number | BSV-12VS-V2 |
| Blade Speed (RPM) | 100 – 1000 fpm |
| Blade Thickness | 0.032 |
| Blade Width (In.) | 1/8″ – 1/2″ |
| Input Power | 120 volt |
| Motor (HP) | 1 hp |
| Shipping Dimensions (L x W x H) (In.) | 60” x 45” x 81” |
| Table Tilt (Deg.) | 45°R & 15°L |
| Throat Depth (In.) | 12.2″ |
| Speed Control | Inverter |
| Weight (Lbs.) | 668 |
*Specifications subject to change without notice.
