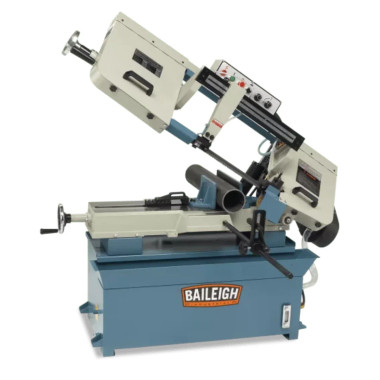

Baileigh BS-916M Horizontal Band Saw
Based on our BS-300M, the Baileigh BS-916M metal cutting band saw has a compact footprint for small shops. This saw’s cast iron head and fully-welded steel base reduce vibration and ensure accuracy.
Features
- 1.5 hp motor is powered by 240-volt single-phase power.
- 8.75” round capacity at 90°.
- Vise miters up to 45°.
- Accepts standard 1” blades.
- 4 cutting speeds: 82, 132, 170, and 235 fpm.
- Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty.
- You can control the hydraulic descent through an easy-to-access panel located on top of the bow.
- Automatically shuts off at the end of the cut for safety and efficiency.
- Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life.
Specifications
| Model Number | BS-916M |
| Blade Guide | Roller |
| Blade Speeds (SFPM) | 82 x 132 x 170 x 235 |
| Capacity Rectangular 90 X 45 X 45 | 8.85″ x 13.5″ x 8.85″ x 6.5″ |
| Capacity Round 90 X 45 | 8.85″ x 6.5″ |
| Capacity Square 90 X 45 | 8.85″ x 6.5″ |
| Descent Control | Hydraulic |
| Drive | Belt x Pulley |
| Input Power | 240V / 1-phase |
| Type of Miter Adjustment | Vise |
| Miter Angle Range (Deg.) | 0 – 45° |
| Motor (HP) | 1.5 hp |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 69 x 44 x 46 |
| Table Height (In.) | 24″ |
| Weight (Lbs.) | 770 |
*Specifications subject to change without notice.
