Description

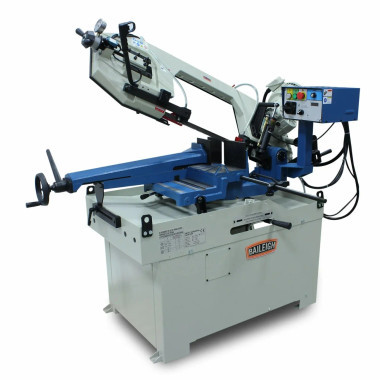

Baileigh BS-350M Dual Miter Band Saw
This saw has a dual angle head capable of cutting 0-60 degrees right and 0-45 degrees left, making it one of the most versatile saws on the market.
Features
- 10.5” round capacity at 90°.
- Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.
- 2 hp motor, driven by an AC inverter, makes the machine reliable.
- Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!.
- Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
- 1” blade width.
- Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.
- Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.
- Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.
- Comes standard with a flood coolant system to wash away metal chips and help blades last longer.
Specifications
| Model Number | BS-350M |
| Blade Guide | Carbide x Roller |
| Blade Speeds (SFPM) | 66–280 Variable |
| Capacity Round 90 X 45 X 60 X 45 | 10.63″ x 9.45″ x 6.3″ x 8.28″ |
| Descent Control | Hydraulic |
| Drive | Gear |
| Input Power | 220V / 1-phase |
| Type of Miter Adjustment | Dual Swivel Head |
| Miter Angle Range (Deg.) | 0 – 60°, 45°L |
| Motor (HP) | High Torque 1.5Kw (AC) |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 69 x 44 x 49 |
| Table Height (In.) | 35″ |
| Weight (Lbs.) | 865 |
*Specifications subject to change without notice.
