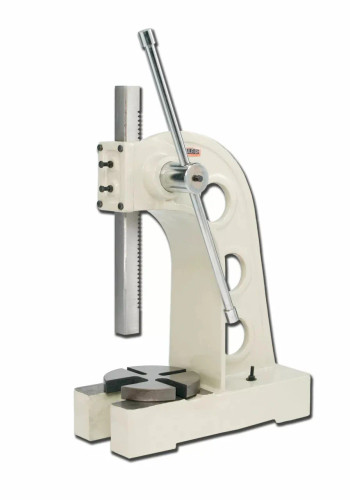

Baileigh AP-5 Arbor Press
We engineered the AP-5 arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its “muscle” and increases its durability.
*Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.
Features
- Has a throat depth of 8.89” and accepts material up to 17.5” high.
- Thick 2” x 2” case-hardened ram transfers pressure without flex for maximum accuracy.
- Adjustable ram cap allows for gap adjustment of ram.
- 31” adjustable, single-leverage handle multiplies your force to produce strain-free pressure.
- Sturdy 2.375″ pivot shaft supports smooth, powerful ram movement.
- Includes a durable 4-position bottom die plate to secure various broach sizes.
- You can remove the bottom plate to press items directly on the AP-5’s framework.
- Can be pedestal- or bench-mounted.
- Manual 5.6-ton arbor press.
- 8.89″ throat depth.
- 15.75″ max material height.
- Typically kept in stock for immediate shipment.
Specifications
| Model Number | AP-5 |
| Approx. Pressure (Tons) | 5.6 tons |
| Ram Bore (In.) | 2″ x 2″ |
| Travel of Ram (In.) | 8.5″ |
| Cylinder Movable | No |
| Weight (Lbs.) | 440 |
*Specifications subject to change without notice.
