Description

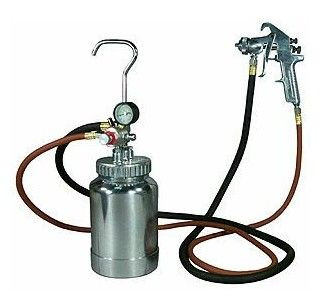

A pressure spray gun with a 2-quart pressure pot, ideal for spraying large areas like buses, trucks, and vans. A 6-foot twin hose set permits easy movement, with a pressure gauge and fluid regulator for accurate settings.
Key Features:
- 2-quart (1893cc) pressure pot allows mixing and painting large batches at once
- Pressure gauge and fluid pressure regulator for accurate spray settings
- 6-foot twin hose set permits easy movement during spraying
- Excellent for spraying large areas such as buses, trucks, and vans
- Optional 2.0mm nozzle size available for different spray patterns
- Excellent for spraying large areas such as buses, trucks, and vans
Technical Specifications:
| Pot Capacity | 2 Quart (1893cc) |
| Nozzle Size | 1.7mm (2.0mm optional) |
| Operating Pressure | 5-20 PSI |
| Air Consumption | 7 CFM average |
| Required Compressor | 3 HP |
| Dimensions (W x H) | 9″ x 13″ (per manufacturer spec) |
Materials & Construction:
6-foot twin hose set permits easy movement and operation of the spray gun during large-area jobs.
Use Cases:
- Spraying large areas such as buses, trucks, and vans
- Shops needing to mix and apply 2 quarts of material at a time
- General enamel and lacquer spraying work
Included Items:
- (1) Spray Gun
- (1) 2P67PT Cup Assembly
- (1) 2P67A6-22 Hose Assembly
Compatibility:
Requires a minimum 3 HP compressor. Optional 2.0mm nozzle available separately.
Astro Pneumatic is an established manufacturer of automotive specialty tools and air tools for professional and DIY use.
